The Science of Surface Roughness (Ra)

Drag finishing allows deep controlled material erosion without altering core geometry. Slide below to see the actual laboratory results of an orthopedic knee joint prostheses polished to a mirror reflection.

Ra 0.8 to Ra 0.01 µm in Minutes

Our high-energy media contact pressure works the atomic peak lines of the steel/carbide surface down to clean, shiny mirror-finishes exponentially faster than manual buffing.

Reduce Labor Costs by 80%

Replace human operator inconsistencies with Siemens PLC precision. Achieve zero-deviation surface repeatability from Monday morning to Friday night.

Zero Collision, Zero Scrap

Individually fixtured parts mean zero chance of part-on-part collision or edge chipping, preserving expensive aerospace materials and carbide inserts.

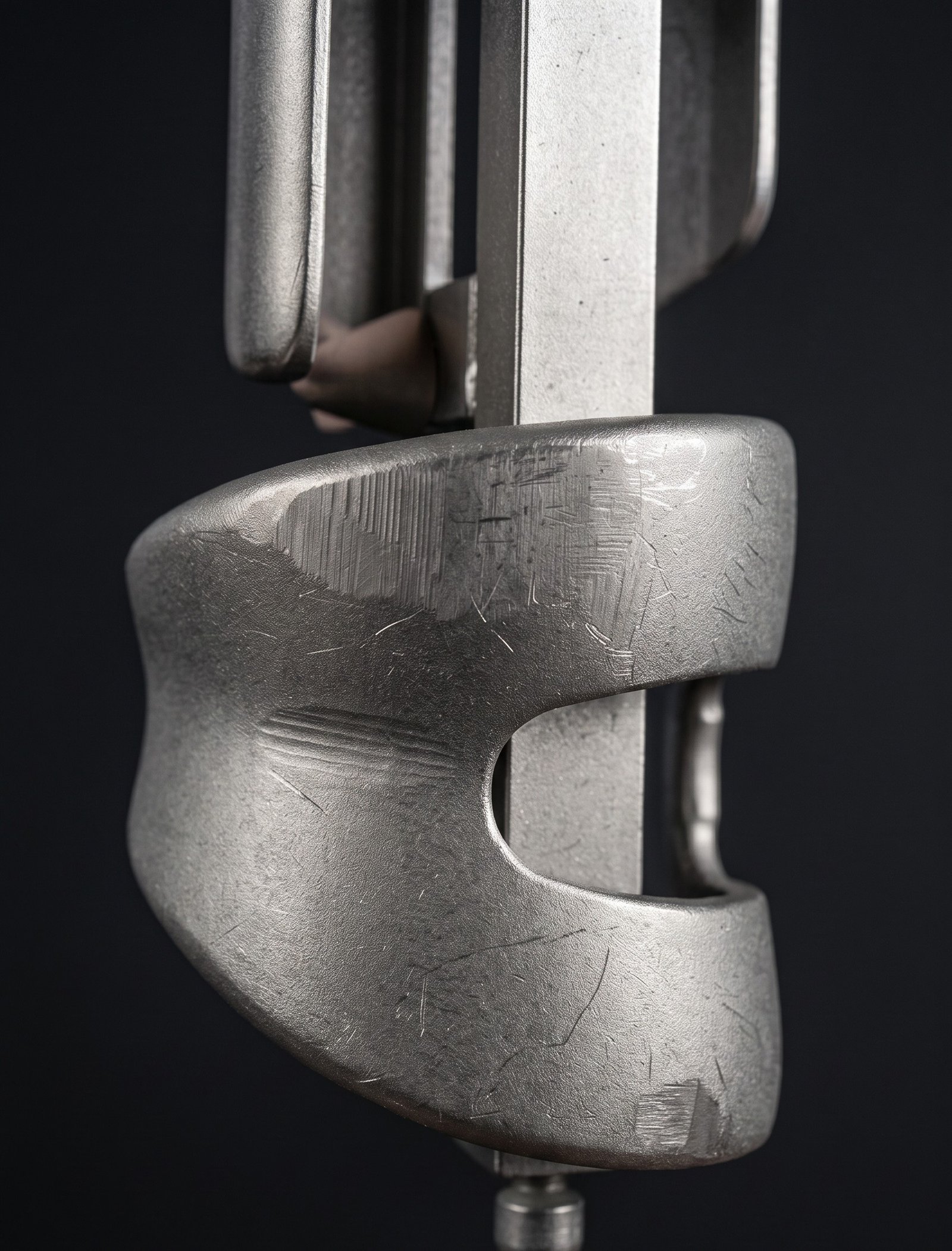

Before (Raw Machined: Ra 0.8 µm)

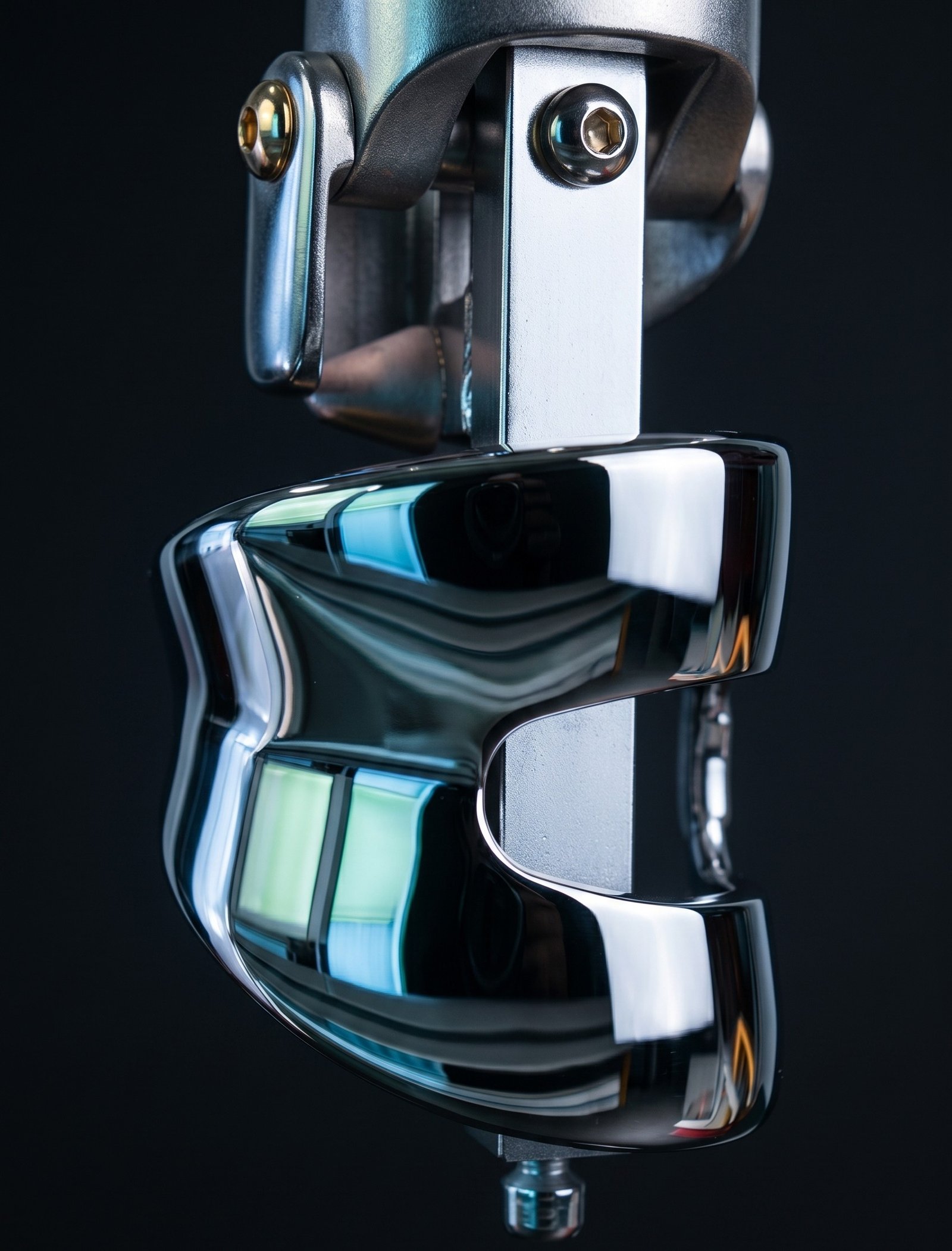

After (Mirror Polish: Ra < 0.01 µm)

Slide the cursor across the workpiece surface to inspect the peak flattening.

Surface Peak Profile Over Time Ra: 0.40 µm

Smart B2B Planning Tool

Interactive Spindle &
Batch Time Configurator

Determine batch capacities and predicted processing durations immediately based on your specific tool diameter parameters. Select your component and slide to adjust sizes.

Select Your Component Type:

Tool Shank/Part Diameter: 10 mm (0.39")

ESTIMATOR ENGINE ACTIVE

Predicted Batch Performance Parameters

Recommended Tech Option Drag Finishing

Recommended Media Code DREP-20 Cones

Compact Series (DF-12) 12 Parts per automated run

Standard Series (DF-30) 30 Parts per automated run

XL-1000 Series 24 Parts per automated run

Predicted Process Cycle Duration: Est. time to hit Ra < 0.01 µm mirror finish.

10 Mins

Drag Finishing vs. Stream Finishing

Understanding the mechanics of both high-energy techniques allows you to select the precise match for your specific parts, geometries, and volume requirements.

1. Drag Finishing

Parts are mounted on fixtures and literally dragged through stationary container units containing ceramic, plastic, or organic polishing compounds. Ideal for fragile parts where geometry preservation is the absolute key to success.

Zero collision risk for complex, large geometries.
Highly programmable separate spindle speed adjustments.
Perfect for delicate tablet punches, dies and implants.

BEST FOR: High-geometry parts, implants, large tooling.

2. Stream Finishing

Workpieces are immersed in a high-speed rotating container filled with media stream. The dynamic flow surrounds and moves around the parts, resulting in extreme mechanical action and shortest cycle times.

Ultra-high speed process (up to 15x faster).
Efficient simultaneous deburring and cleaning in one step.
Outstanding performance on carbide cutting inserts.

BEST FOR: Extreme speeds, high-volume tool inserts.

Comparative Performance Matrix

Feature	Drag Finishing	Stream Finishing
The Action	Parts dragged through stationary media.	Parts immersed in rotating media stream.
Intensity	High	Ultra-High
Speed Profile	Fast (10 - 20 minutes)	Extreme (2 - 5 minutes)
Ideal Workpieces	Large tools, punches, delicate implants.	High-volume cutting tools, insert radiusing.
Configuration	Programmable 15° angled heads available.	Fully integrated conveyor-conforming.

Sectors We Serve

Click on each industry below to explore the exact surface treatment challenges, the solutions we provide, and the technical benefits.

Edge Preparation

Edge rounding and precise radius control on end mills and drills to hit the absolute optimum cutting parameters.

Deburring & Polishing

To remove micro-burrs and establish smooth, shiny flutes on HSS Taps and complex tooling profiles.

Post-Treatment

Drag finishing serves as the most effective method to clean droplets after PVD/CVD coating, boosting life up to 300%.

Polishing of Tablet Punches

To polish and perform safe, automated daily maintenance of tablet punches, preventing "picking and sticking" problems in high-speed tablet presses.

Polishing of Dies

Utilizing specialized multi-cavity holders, die blocks are finished uniformly internally without affecting critical dimensions.

Looking for specialized Tablet Tool Maintenance?

Visit our dedicated global platform for FDA-compliant solutions, mirror powders and organic granulates.

PunchPolishing.com

Engine Components

Ensures mirror-like finishes on camshafts, crankshafts, and pistons, drastically lowering friction coefficients and extending component life.

Transmission Gears

Deburring and micro edge radiusing of gears to reduce micro-pitting and operational noise levels on high-end powertrains.

Exterior Trim

Achieves flawless reflective coatings on car brand emblems, badges, and structural trim plates for luxury vehicles.

Turbine Blade Finishing

Finishing and deburring turbine airfoils to optimize thermodynamic flows and relieve physical micro-cracks and stresses.

Structural Elements

Continuous surface smoothing of critical aircraft structural parts like landing gears, ensuring uniform fatigue resistance.

Post-Coating Processing

Gently polishing and cleaning parts after protective coatings are layered, delivering defect-free aerodynamic surfaces.

Orthopedic Implants

Establishes biocompatible surfaces for hip joints, knee replacements, and bone screws to dramatically reduce abrasion inside the body.

Surgical Instruments

Eliminates burrs on scalpels, forceps, and micro-tools to avoid hazardous friction and assure ultimate safety during procedures.

Dental Components

Achieves high-gloss polishing on dental implants for superior osseointegration and biocompatible structural longevity.

Firearm Components

Polishes and deburrs slides, frames, barrels, and trigger groups to ensure seamless feeding, cycling, and reliable trigger pulls.

Ammunition Casings

Ensures defect-free casings with zero-fault surface imperfections, ensuring high-speed automatic extraction reliability.

Military Standards

Guarantees precise surface parameters that comply with strict global military and armor performance specifications.

Surface Smoothing

Removes print-layer lines on complex metal or polymer components without rounding off sharp micro-features.

Complex Geometries

Ensures uniform polishing action reaches interior channels and undercut structures produced via additive technologies.

Post-Processing Prints

Bridges the gap between raw sintered metal structures and fully functional ready-to-assemble mechanical components.

Technical Engineering Data

ThePolishing™ Drag Finishing Machine Range

Engineered with high-thickness industrial frames. Multi-Grid Universal Voltage (360V - 510V, 50/60 Hz, 3-Phase) for direct global workshop integration. Full CE conformity.

ThePolishing™ DF-Compact 12

Compact, space-saving drag finishing without compromising mechanical and electronic quality.

MODEL: TP-DF-12

Heads & Fixtures 4 Rotating Heads / 12 Spindles (Quick JIGGs)

Power Consumption 1.5 kW Nominal (360V - 510V 3-Phase)

Middle Core Kazan 250 mm Clamping Length / Octagonal Basin

Standard Features:

Laser Sensors for automatic depth determination
Standard threaded collet system up to 30 mm clamp
Weintek HMI Touch Panel (500 Recipes Memory)
Siemens PLC Control Unit for long-term system stability

Process Consumables

Engineered Abrasive Media & Compounds

A high-energy machine is only as powerful as the media it runs. We provide custom calibrated shapes and sizes to prevent "lodging" in complex geometries.

HEAVY DEBURRING

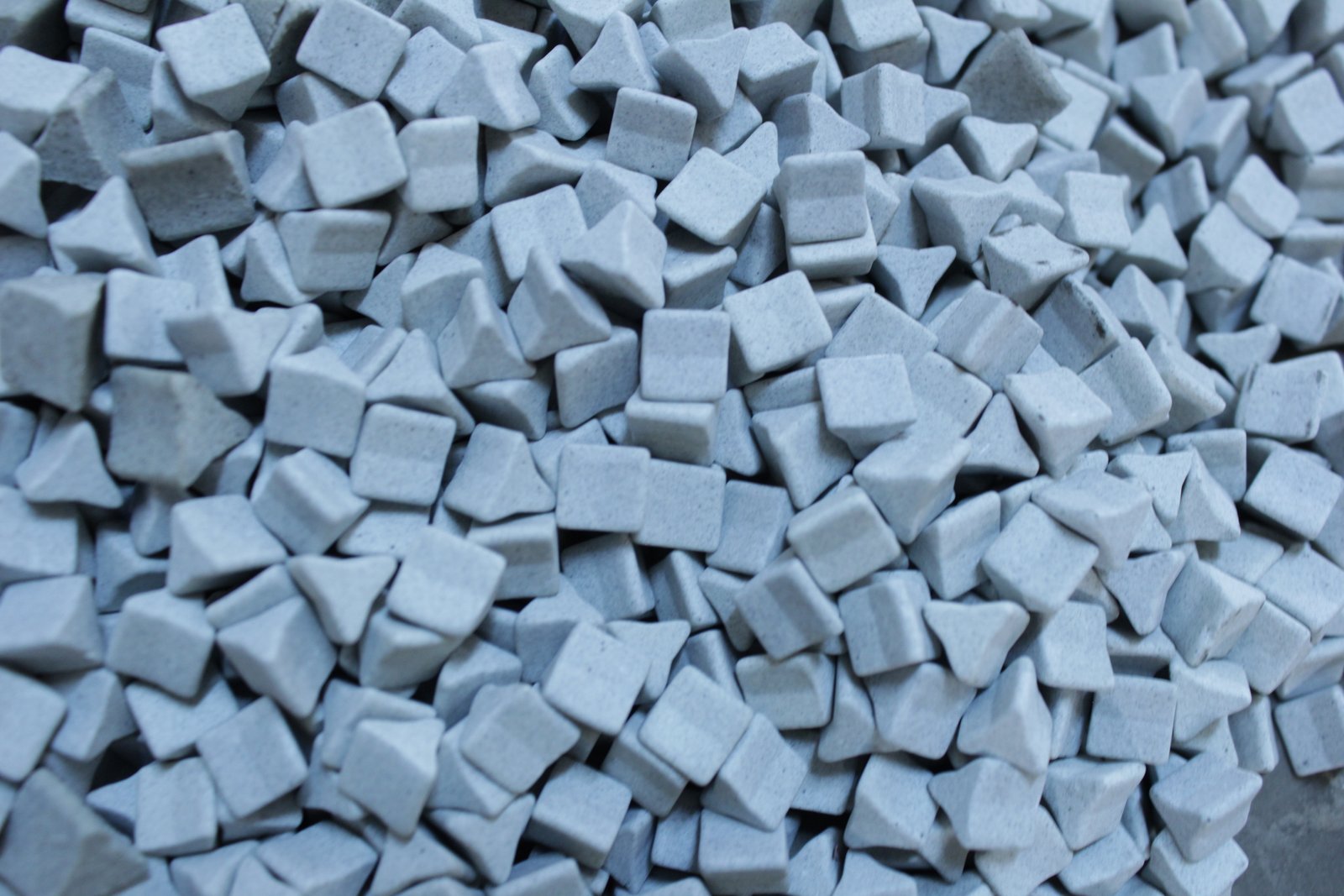

DREP-20 Ceramic Media

High-density, long-lasting micro ceramic cones designed specifically for carbide insert edge radiusing and aggressive scale removal from hard steels.

Ideal for: Ti & Cobalt-Chrome

MIRROR POLISHING

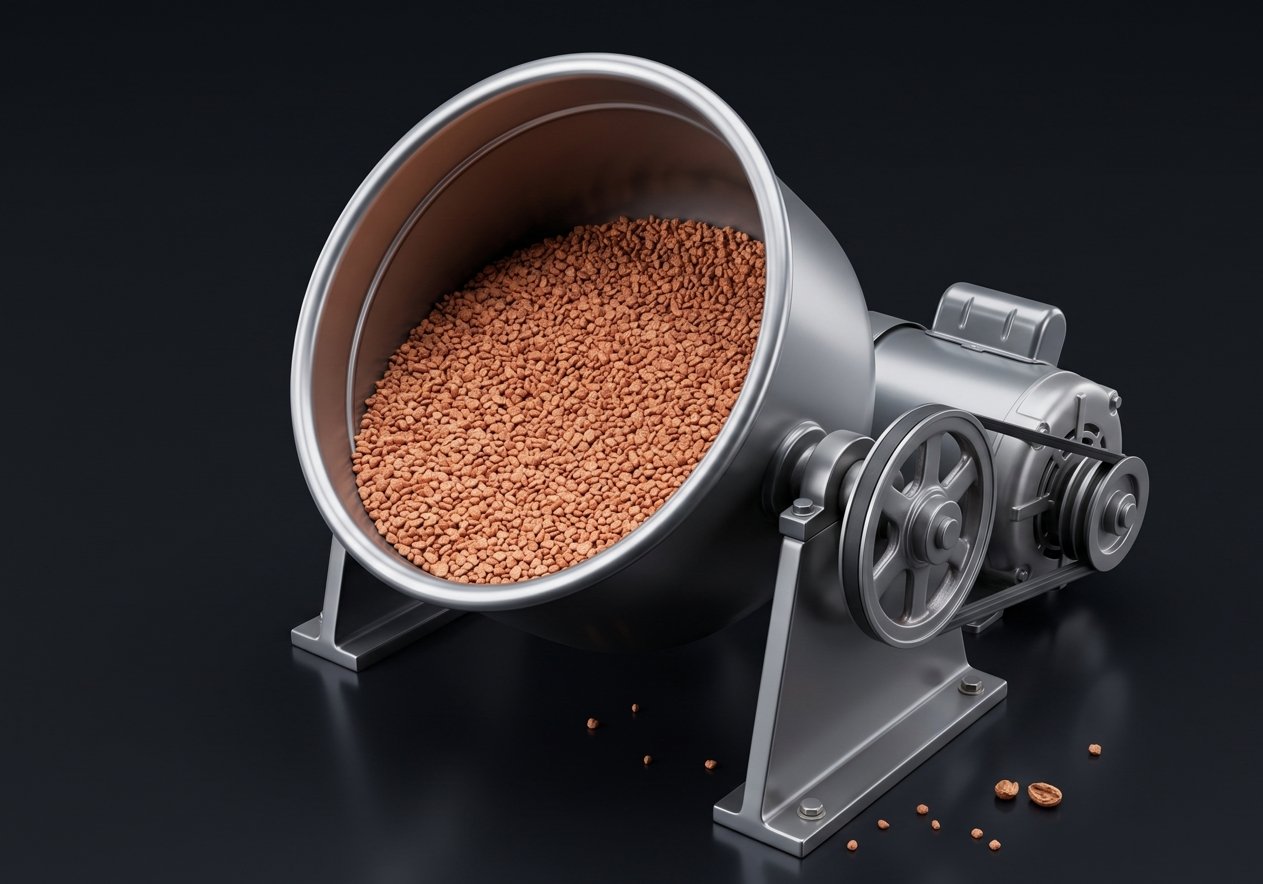

WS-400 Polishing Granulate

Premium organic walnut shell grit pre-treated with our specialized polishing powders for dry-finishing. Achieves a true mirror shine on tablet punches.

Ideal for: Tool Steel & Stainless

CHEMISTRY ADVANTAGE

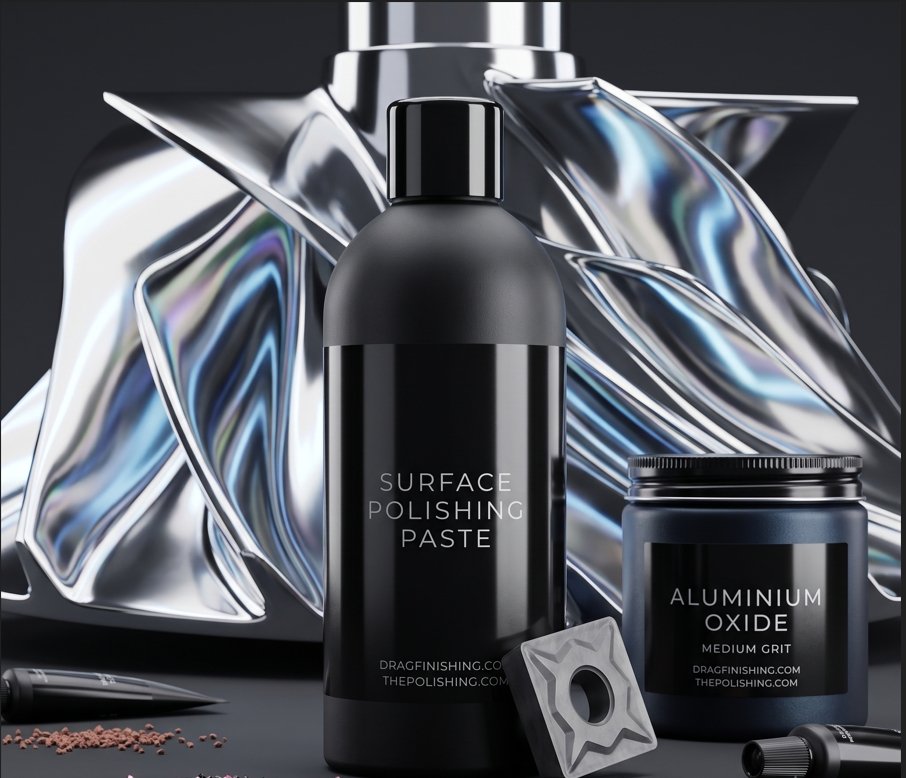

ThePolishing™ Additives

Highly concentrated liquid compounds and degreasing rinses that keep media active, suspend microscopic metal filings, and prevent flash corrosion.

Dosage: Low Dosage / High Yield

Process Validation

Free Sample Lab Testing & Surface Analysis

Don't guess your roughness levels. Ship us raw sample workpieces (such as milling cutters, inserts, orthopedic joints or gun slides). Our technical lab will run optimized media testing and return a comprehensive optical surface evaluation report alongside your processed mirror-finished parts.

1

Ship us your raw unpolished material pieces.

2

Our lab runs extensive dry/wet test cycles.

3

Receive processed parts back with absolute Ra verification.

2-YEAR FACTORY WARRANTY

Submit Your Part Details

Alternatively, you can send your technical drawings and RFQ documents directly to: info@dragfinishing.com
